Quality Control
PCPAYCT is definitely your trusted PCB Assemble partner! In addition to friendly service and on-time delivery, we also focus on producing high-quality products that meet or exceed customers’ expectations.
We have implemented the ISO9001 quality system. Quality control has always been an important part of our production process and runs through every link.
Manufacturing Standards
Our technicians have many years of experience and have been working to high demands and standards
Quality Control Process
We believe that a complete quality control process can effectively ensure quality
Supply Chain System
A complete supply chain system can provide high-quality and affordable raw materials
Quality Certification
We have ISO 9001 as a proof of our product quality
PCB Assembly Manufacturing Standards
Our experienced technicians will always ensure that all products are of exceptional quality,
reliability and consistency.
| PCB Assembly Parameters | Bulk Order Supported Capabilities | Sample Order Supported Capabilities |
|---|---|---|
| PCB size | L50xW50mm~L510xW460mm | Unlimited |
| PCB thickness | T=0.4~4.0mm | Unlimited |
| Min SMD size | 01005（inch） | 01005（inch） |
| Max SMD size | 45x45mm（Connector length:150mm) | Unlimited |
| Min IC Pin Pitch | 0.3mm | 0.3mm |
| Min BGA Ball Pitch | 0.4mm | 0.4mm |
| Equipment placement accuracy | ±0.35mm @3σ | ±0.35mm @3σ |
| SMD production capacity | 1000K points/day | 200 Orders/day |
| DIP production capacity | 500K points/day | 200 Orders/day |
Quality Control Process
The perfect quality assurance system and various testing equipment help us monitor the entire production process to ensure the stability of the process and product quality. At the same time, we also introduce advanced instruments and technical methods to achieve continuous improvement.

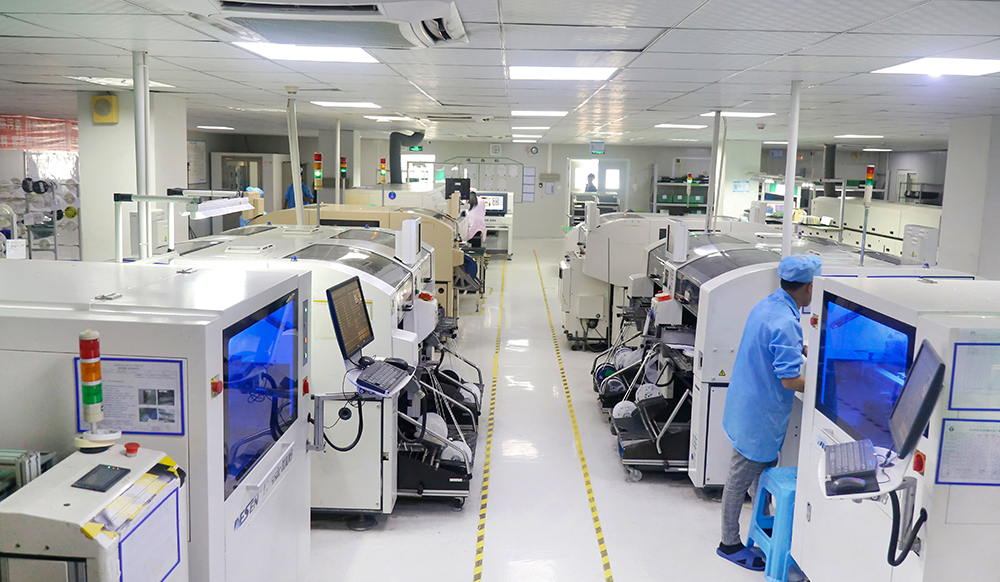

PCBAYCT has dozens of SMT production lines. Advanced production equipment, strict quality control and intelligent service system to ensure the standardization and best quality of each production process.
Smart management system & Advanced production and testing equipment
Quality checking process and description
01-Process review
Assess and inspect the particularity of the PCBA manufacturing process in advance, guide the production, and improve the quality from the process technology.
02-IQC Incoming Quality Control
● Check whether the resistance and capacitance values are correct ● Check whether the pads on the components and the board are consistent ● Confirm whether the incoming quantity is accurate ● Check whether the components are abnormal
03-SPI Solder Paste Inspection
SPI can detect whether the solder paste is sufficient and uniform, which can effectively prevent production quality problems in advance caused by poor solder paste printing.
04-Online AOI Inspection
The AOI can detect the wrong solder, reverse solder, false solder, empty solder, incomplete solder, short circuit, offset, tombstone, etc. after reflow soldering. And it can also detect excessive solder, less solder, continuous solder and other undesirable phenomena in the appearance of PCBA solder joints.
05-First sample test
Combined with Gerber, BOM and coordinate files, the resistance and capacitance in the completed PCBA are verified again by the first-sample tester to ensure the correctness of all parameter values.
06-Off-line AOI inspection
According to the IPC610D standard, inspect the soldered surface mount PCBA for errors, omissions, and false connections.
07-X-Ray welding inspection
Inspect the solder joints of invisible components to ensure the reliability of each solder ball of the BGA.
08-QC manual inspection
Refers to the standard IPC--610 inspection standard, and the finished board is visually inspected to ensure 100 % Good products shipped.
Resolving Quality Issues
If your order does not meet specifications, you will enjoy our rework or refund policy.
You can issue any complaint within 5 working days after receiving the products. Our after-sales service team will resolve these issues as soon as possible, usually within 1-3 working days. We promise that if quality problems are caused by fabrication, PCBATop will be responsible for free maintenance or rework.
